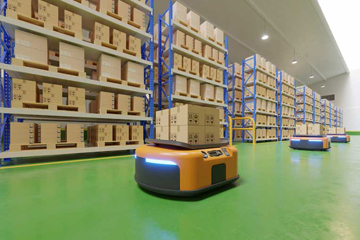

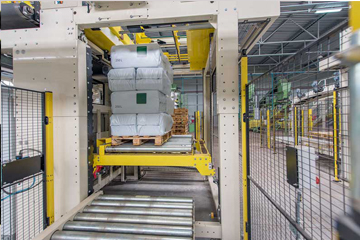

Gantry Robot – Megalinear Open end
AS/RS (automated storage / retrieval system) are systems used to put, keep and take out from stock goods of small/middle size and weight.
Typical solution is with timing belts in pitches 8M and 14M both in polyurethane.
Some of the industries pain points include:
Heavy loads
Energy efficiency
Cold Resistance
Noise
Tracking due to length & load
Megadyne solution
Megalinear RPP and HTD high Strength low elongation belt
Megalinear GW polyurethane 14 and 20 mm pitch owith very high strength steel cords for lifting and gantry crane applications within warehouses.

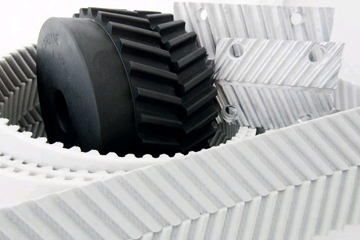

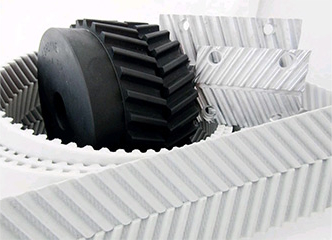

Megadyne Quiet Self Track QST System delivers an improved reduction in noise level.

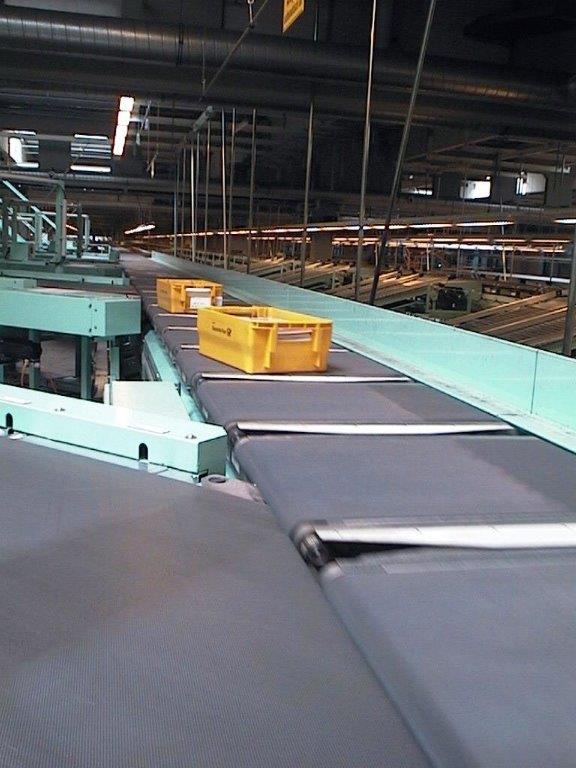

Sorting – Cross-Belt Sorters
The Logistics industry moves fast or it fails. Cross-Belt and Tilt-Tray Sorters are right at home in the high-speed logistics environment, helping to minimize transfer times while maximizing conveying performance.

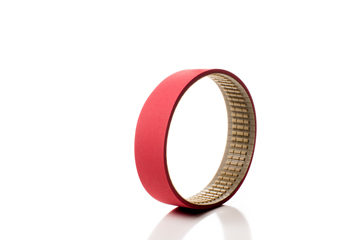

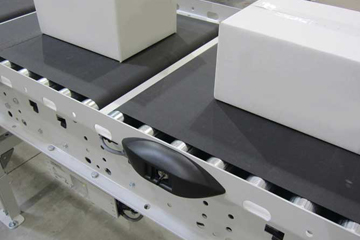

Roller Conveyer – RAPPLON® High Performance Flat Belt
Swiss made RAPPLON® High Performance Flat Belts are available in a wide selection of belting solutions for all roller drive systems, delivering excellent performance under challenging operational challenges.
Popular solutions include heavy duty roller drive belts and high speed diverting system.

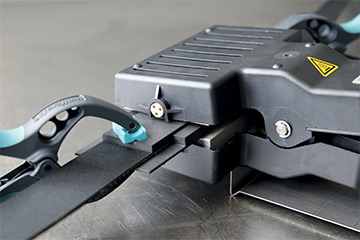

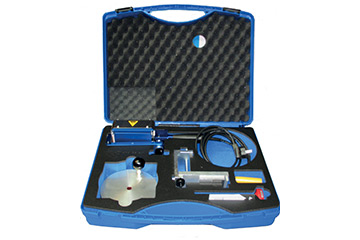

RAPPLON® proprietary QuickSplice technology effortlessly enables anyone to join a roller drive belt in under 20min. It comes with a neat portable carry case.

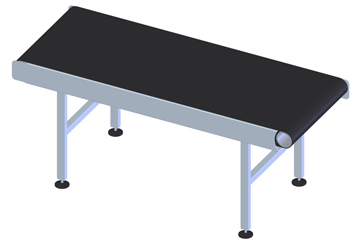

Transportation Conveyor – Flexam Synthetic belt
At the heart of the logistics operation, line conveyors often do the bulk of the work. They also consume much of the energy used.
Some of the industries pain points include:
Heavy loads
Energy efficiency
Cold Resistance
Noise
Tracking due to length & load
Ammeraal Solution

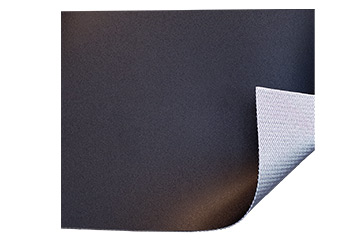

AMMdurance ultra energy efficient for longer
Impace Resistant range handles heavy loads, reduce fray, improve tracking and are energy efficient
Low noise fabrics
Reduced elongation of the belt
Improved reliability

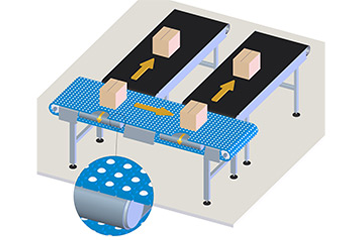

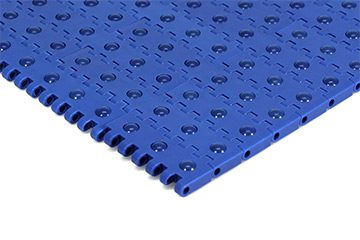

Sortation Lines – QNB Ball
Sortation systems at the heart of any modern automated logistics center. A sortation line facilitates goods to be redirected into a predetermined destination.
As an midrange throughput system UNI QNB Ball offers the following advantages:
Great value total cost of ownership
Simple maintenance
Sort full parcel spectrum at once (big to small, heavy to light), incl. Poly & Jiffy bags
Ammeraal Beltech offer the total belting solution, from tried and tested 1 inch pitch modular roller ball belt to the appropriate wear resistant activator belt and accessories.

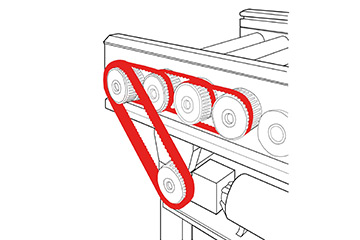

Roller Conveyor Applications
Timing belts or poly-v rib belts are commonly used on roller conveyors. On the external side of the roller, power transmission belts deliver power from the motor to the main driven conveyor roller. From this stage rollers are interconnected by either timing belts or poly-v rib belts, some of which can be produced with elastic-stretch properties.
Megadyne Solution

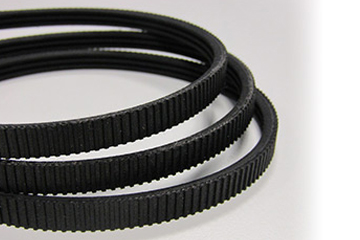

ROLLPOWER: Rubber Ribbed Belt in EPDM compound dedicated to roller conveyor applications.

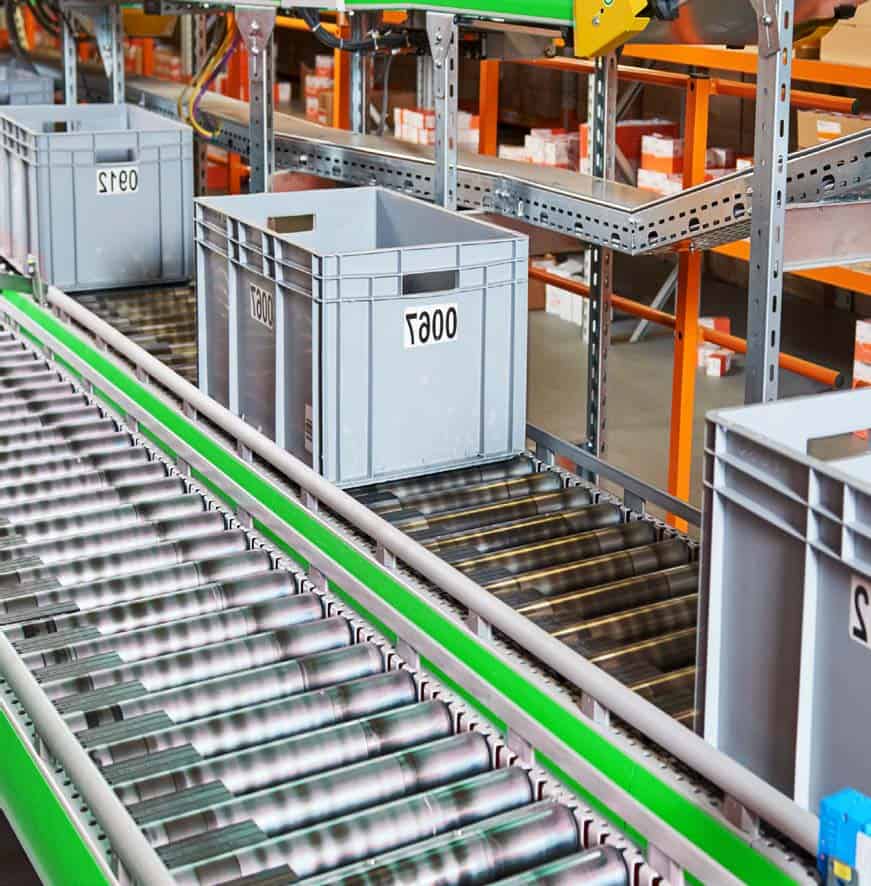

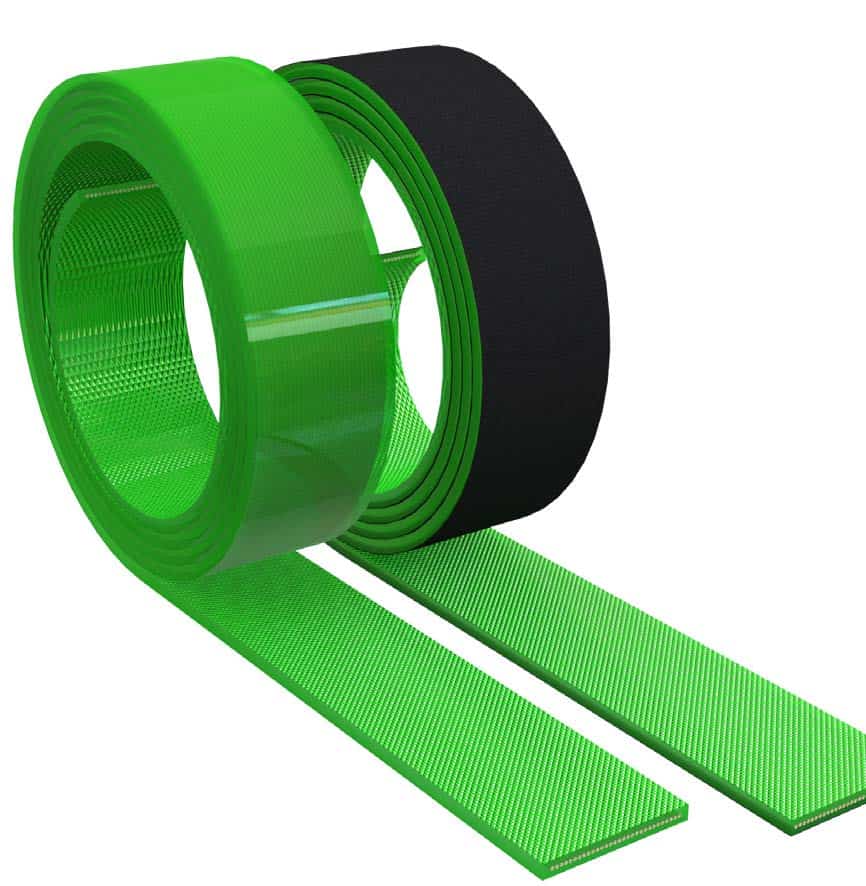

Megalinear Live Roller 45mm: MLR 45mm designed to meet the specific needs of demanding high performance applications in automated warehouse systems.
MEGASYNC Rubber Timing Belts: High strength fiberglass cords to ensure superior levels of performance.

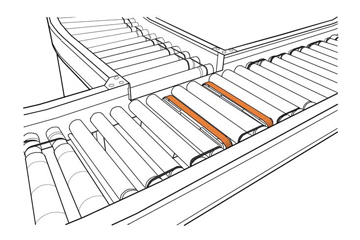

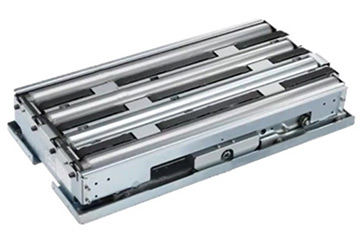

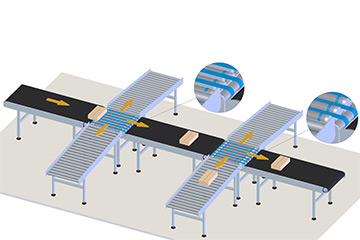

Right Angle Transfer – Rapplon or Timing Belt Solution
The right angle transfer (RAT) facilitates a 90° product transfer in a compact area. RAT systems are usually built into roller conveyors and form the junctions.
Right Angle Transfers, depending on the implementation, are often designed with high grip narrow belts fabricated to tight tolerances flexing over small pulleys.
Diverters
In today’s warehousing and distribution environments, offloading of product for specific fulfillment needs can be accomplished with high friction belt right angle diverters. Starting with a base synchronous belt, we offer a broad range of high friction cover surfaces. From Megalinear joined polyurethane synchronous belts and Megaflex truly endless polyurethane synchronous belts with TPU smooth covers, to rubber synchronous belts with homogeneous covers, along with specialty cover materials like DuraTaq® high friction.

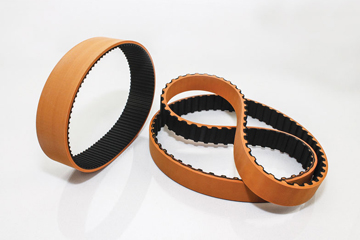

RUBBER SYNCHRONOUS belts with high friction molded covers including DuraTaq® and Linatex®.
POLYRETHANE SYNCHRONOUS BELTS: in truly endless Megaflex or joined Megalinear with high friction covers used to divert goods 90° from the starting direction of travel.

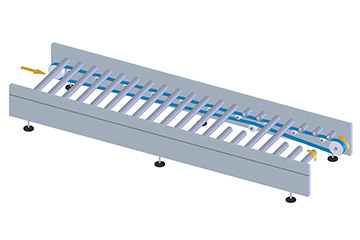

Belt Over-Roller
Belt over roller conveyors are one of the most common applications in a distribution center. Our new elastic belt for segmented conveyors is made from extruded Polyurethane with a high-grip top cover. Our fit-and-forget solution allows for simplified conveyor design where no take-up system is required. The new Elastic Belt – 54564 UU N06 RFQ HG – is the ideal solution for slider bed applications or segmented belt-over-roller conveyors and is even suitable for slight incline/decline sections thanks to its high-grip textured profile cover.
Industrial Elevators
Megadyne’s expertise in elevator and lift solutions extends to industrial elevators. Our belting solutions are used in vertical and bi-directional elevator applications.
Our vast portfolio of Megalinear open end urethane timing belts and RPP Steel open end rubber timing belts are designed to handle the rigors of these lift applications.

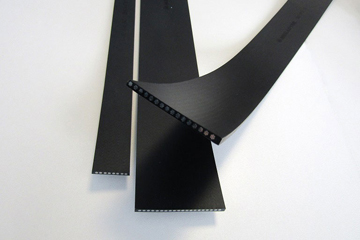

Megalinear P3.3 is an open end Traction Belt specifically designed for use in lifting industries.

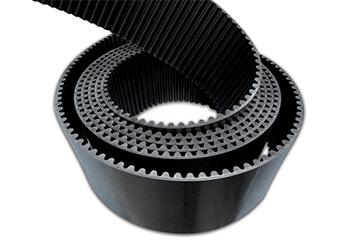

Megalinear GW was designed with tooth stiffness and special high tension zinc coated steel cords for high load lift applications guaranteeing high transmittable power under continuous substantial loads.
Megalinear QST has an advanced offset tooth design with an NFT cover that is self-tracking and provides a precise and continuous mesh between belt and pulley resulting in reduced noise level.
Curved Conveyor – Flexam Synthetic belt
A quality belt curve needs a quality belt fabricated to exact geometries and specifically selected to match the application’s requirements.
As the industry leader in the supply of Belt Curve material, the construction of choice over many decades is a 2-ply PVC belt construction with flexible fabric members allowing the belt to flex in all directions.
Numerous profiled top covers available.
Special fabrics designed for accuracy & fabrication requirements of curve belts.
High-speeds greater than 2.5m/s.
Solutions for positive drive or friction driven available.

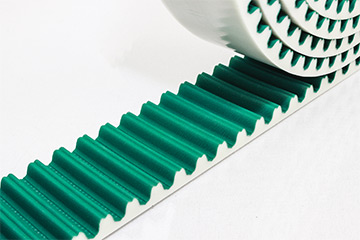

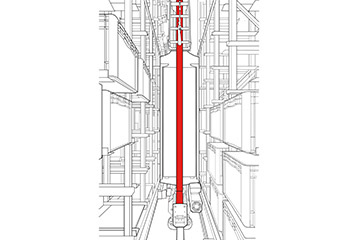

AS/RS – Megalinear Open end
AS/RS (automated storage / retrieval system) are systems used to put, keep and take out from stock goods of small/middle size and weight.
Typical solution is with timing belts in pitches 8M and 14M both in polyurethane.
Some of the industries pain points include:
Heavy loads.
Energy efficiency.
Cold Resistance.
Noise.
Tracking due to length & load.
Megadyne Solution
Megalinear RPP and HTD high Strength low elongation belt.
Megalinear GW polyurethane 14 and 20 mm pitch owith very high strength steel cords for lifting and gantry crane applications within warehouses.
Megadyne Quiet Self Track QST System delivers an improved reduction in noise level.
RCS / RS – AVS / RS – ISORAN and Pulleys
Robots are becoming more and more effective in the logistic centres.
In such machines with high dynamics and space-saving layout the belt plays a fundamental role, therefore it must be designed and studied to guarantee maximum performance and reliability
Some of the industries pain points include:
Noise.
Accele.
Energy efficiency.
Cold Resistance.
Megadyne Solution
PULLEYS: available cast pulleys or from laminated material in metal, with standard or special profile custom made.
ISORAN RUBBER TIMING BELTS: high strength fiberglass cords to ensure superior levels of performances.
